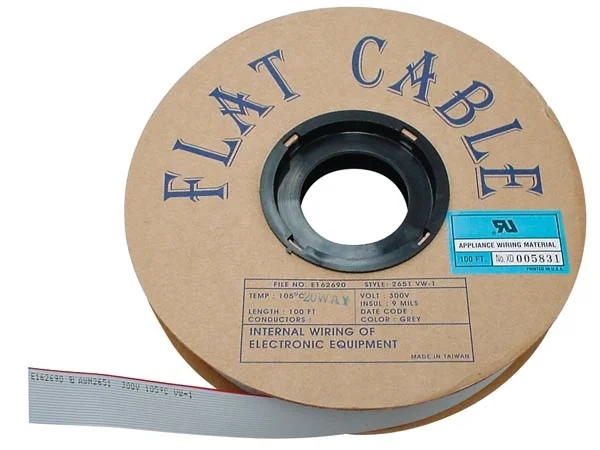

NUMBER OF CONDUCTORS: 26
- PITCH: 1/2" (1.27MM)
- COLOUR: GREY
- LENGTH: 100FT (30.48M)
- CONDUCTOR:
-
- STRANDED
-
- SIZE: AWG30
-
- NUMBER OF STRANDS PER CONDUCTOR: 7 X 0.1MM
-
- SPACE BETWEEN THE STRANDS OF THE VARIOUS CONDUCTORS: MIN. 1.27MM
-
- CROSS SECTION: 101 MIL²
- INSULATION:
-
- INSULATION MATERIAL: PVC GREY
-
- AVERAGE INSULATION THICKNESS: 9 MIL
-
- MIN. INSULATION THICKNESS: 7MIL
- ELECTRICAL CHARACTERISTICS:
-
- SPARK TEST: 2500V
-
- DIELECTRIC STRENGTH TEST: MIN. 2KV IN 1 MINUTE
-
- CONDUCTOR RESISTANCE: MAX. 237OHM/KM
-
- INSULATION RESISTANCE: MIN. 1GOHM/M
-
- CAPACITY: 40PF/M
-
- INDUCTANCE: 1.45MH
-
- IMPEDANCE: 100OHM
-
- PROPAGATION: 4.2NS/M - Velleman
