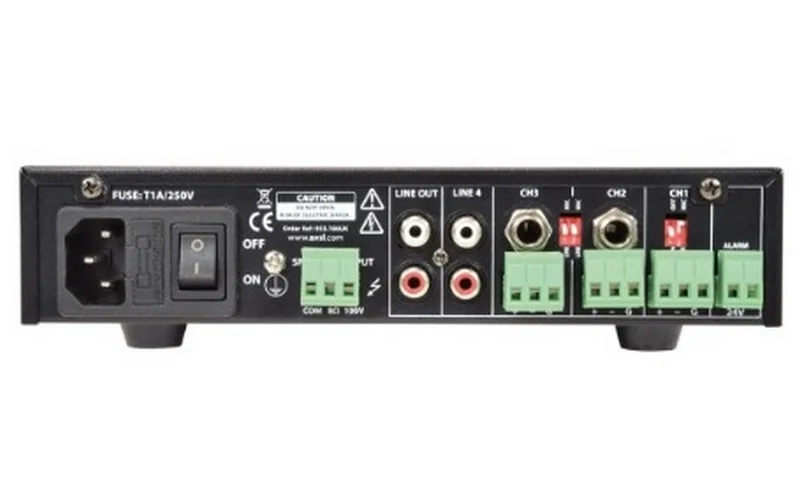

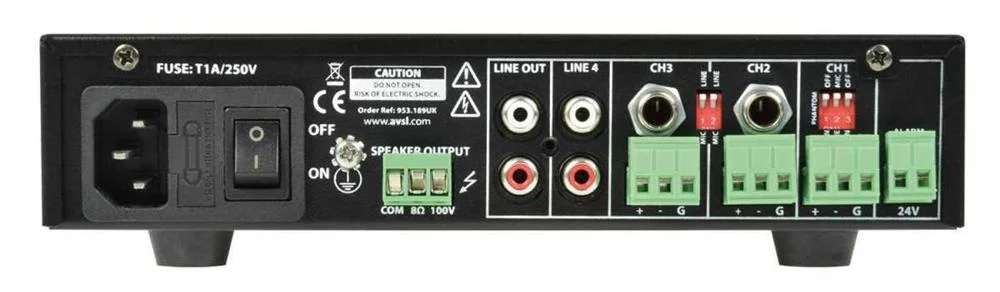

100V mixer-amplifiers with a 5-input mixer in a half width 1U housing. 3 switchable mic/line inputs, an RCA line input and a 3.5mm Aux input are governed by front panel volume controls and a Master output control. Mono output to either 100V line or 8 ohms speaker load is connected via a removable screw terminal connector on the rear panel. Supplied with rack-mounting hardware which can be configured to mount a single unit against a wall or under a worktop. Designed as a versatile solution for small to medium PA installations.Power supply: 170-264Vac, 50Hz (IEC)vbCrLfAmplifier : construction: Class D + transformer outputvbCrLfInputs: Mic/line (combo), 2 x mic/line (6.3mm), line (RCA), aux (3.5mm)vbCrLfLine output: 2 x RCA (mono)vbCrLfSpeaker output: Euroblock terminals: 100V / 8 Ohms / ComvbCrLfMute: 24V relay contactsvbCrLfTHD: <0.4% @ 1kHzvbCrLfInput impedance: 1k Ohms (mic/line)vbCrLfInput sensitivity: -10dB (line), -45dB (mic)vbCrLfSNR: 80dB (line), 75dB (mic)vbCrLfFrequency response: 100Hz - 18kHzvbCrLfPhantom power: +20V CH1 (XLR or rear terminals)Output power : rms: 60WvbCrLfDimensions: 269 x 210 x 44mmvbCrLfWeight: 2.47kg

Adastra Ua90 5 Canais 100 - 18000 Hz Preto
