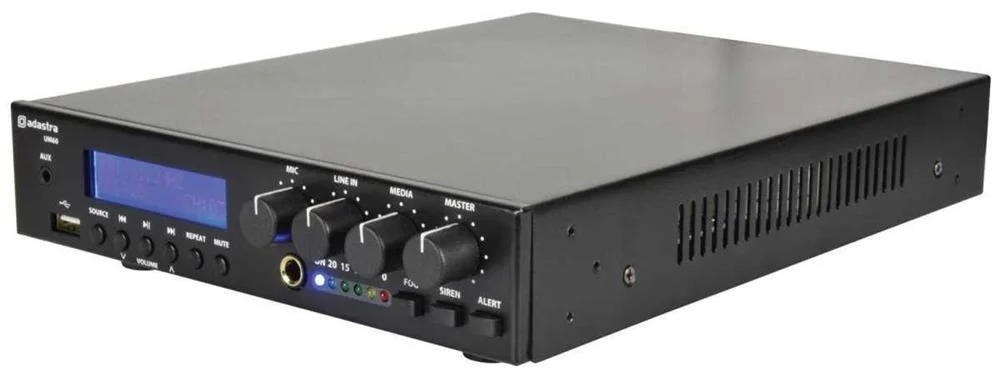

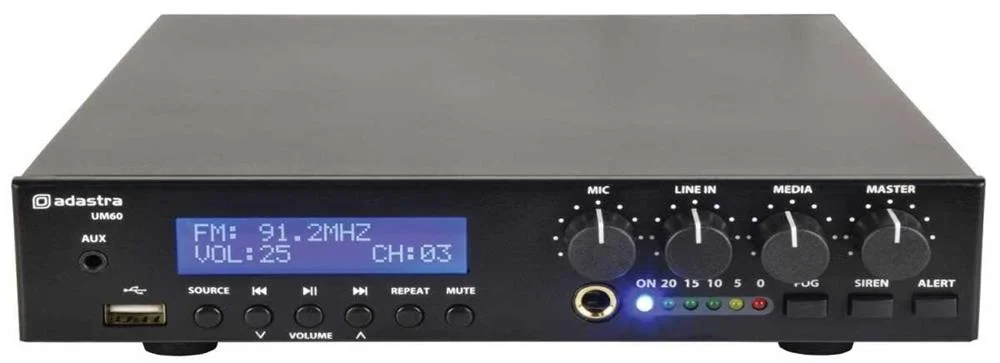

100V mixer-amplifiers with USB audio player, FM tuner and BT wireless receiver in an ultra compact housing. Microphone input, line input and USB/FM/BT sections are governed by front panel volume controls and a master volume. Mono output to either 100V line or 8 Ohms speaker load is connected via screw terminals on the rear panel. Supplied with hardware for mounting 2 units side by side in a 1U 19" rack space. Designed as a versatile solution for small to medium PA installations.Power supply: 170-264Vac, 50Hz (IEC) or 24VdcvbCrLfAmplifier : construction: Class D + transformer outputvbCrLfAudio source: Internal USB/FM/BT playervbCrLfInputs: 1 x mic (6.3mm), 1 x line (2 x RCA), 1 x aux (3.5mm)vbCrLfLine output: 2 x RCA (mono)vbCrLfSpeaker outputs: Screw terminals - 100V / 8 Ohms / ComvbCrLfDC power: 24Vdc screw terminalsvbCrLfMute: 24V relay contactsvbCrLfTHD: <0.4% @ 1kHzvbCrLfInput impedance: 1k Ohms (mic/line)vbCrLfInput sensitivity: -10dB (line), -45dB (mic)vbCrLfSNR: 80dB (line), 75dB (mic)vbCrLfFrequency response: 100Hz - 18kHzvbCrLfBluetooth version: 5.0Output power : rms: 60WvbCrLfAlarm output: Fog, siren & alert generatorvbCrLfWeight: 2.47kgvbCrLfDimensions: 269 x 210 x 44mm

Amplificador Ultra Compacto Serie Um 100v 60w
